Roof Mount System for Solar Racking Attachment and Other Rooftop Applications

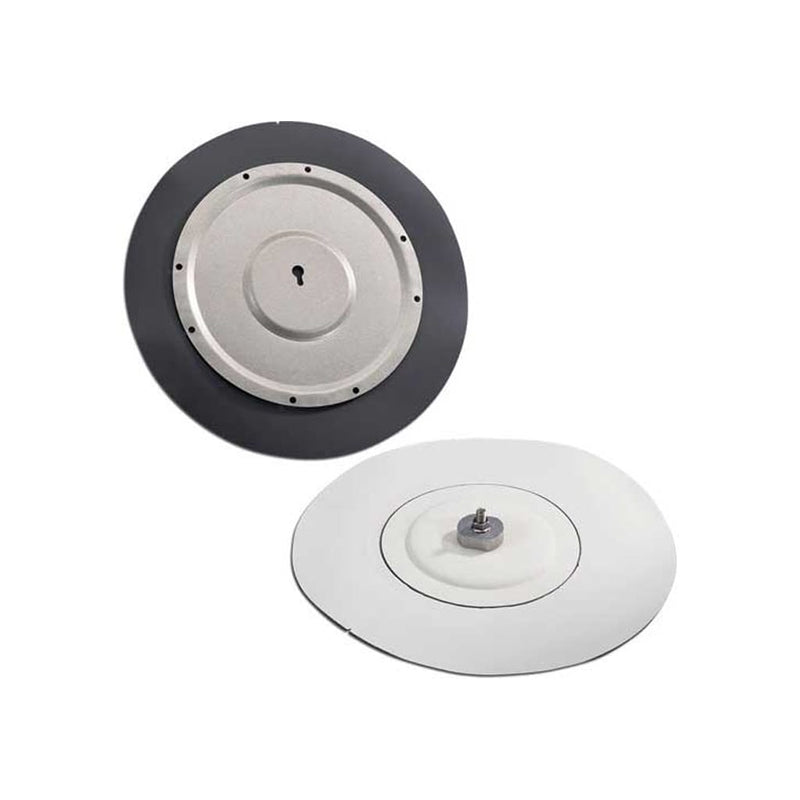

OMG PowerGrip PLUS is a roof mount system designed to secure ballasted solar racks and other equipment to roofs covered with thermoplastic (TPO & PVC) roof membranes.
OMG PowerGrip PLUS provides a secure connection directly to the roof deck or structural members. Once heat welded in place, properly installed PowerGrips can help to eliminate rack movement and remain watertight.
Features & Benefits
- A properly installed PowerGrip PLUS provides a secure anchor to the roof deck and remains watertight.
- Simple installation process saves time and labor.
- Available in most PVC and TPO membrane brands for 100% compatibility.
- Helps protect thermoplastic roof covers from damage due to ballasted rack movement.
- 15⁄8-in. diameter x .-in. tall mount, provides optimal perch securing brackets or struts.
- PowerGrip is available in several membrane types, thicknesses and brands, and is fully compatible with mechanically attached, fully adhered and ballasted roof systems.
PowerGrip is also ideal for a wide variety of other roof-top applications.
Roof Type needs to be verified (PVC, EDPM, TPO and manufacture)
PRODUCT INFORMATION
INSTALLATION BROCHURE
| Tensile Strength |
TAS 117-95 (A) |
2000 lbf. (minimum) |
| Shear Strength |
ASTM E488-96 |
1075 lbf. (minimum) |
